Kiheung KNC-U1250
Détails

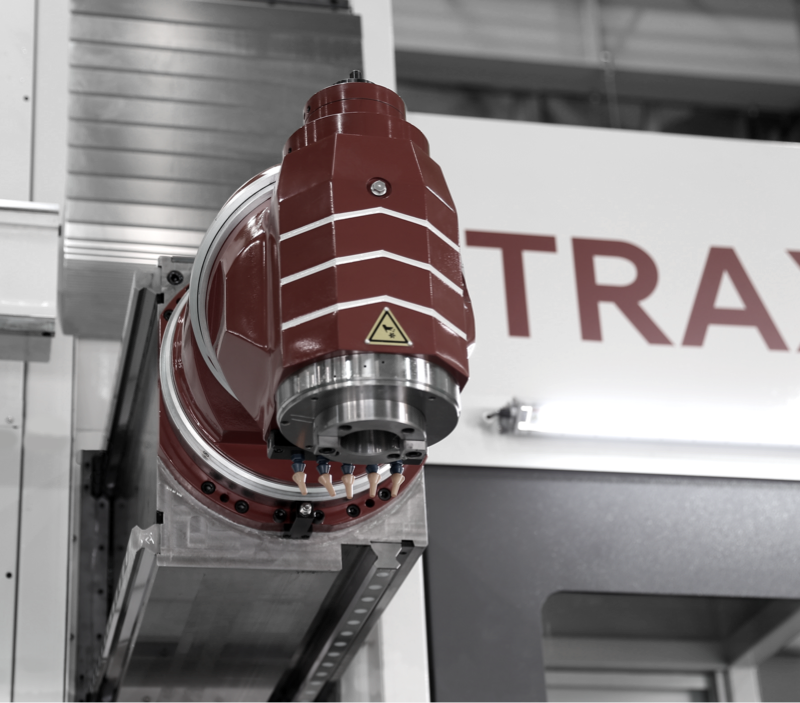

Tête universelle programmable
Spécifications:
- Controller: HEIDENHAIN iTNC 640, SIEMENS 840D, FANUC 31i
- Table dimensions: 3200,4200,5200 x 1100mm
- X axis: 3000,4000,5000mm
- Y axis: 1250mm
- Z axis: 1600m2000mm
- Feed: 8000mm
- Rapid: 16000mm
- Spindle power: 28/38kW
TABLE:
Length (mm): 3200/4200/5200
Width (mm): 1100
T-slot/Width/Distance (mm): 8/22/125
Max permissible load (kg): 12000/14000/16000
TRAVEL:
Longitudina (mm): 3000/4000/5000
Cross (mm): 1250
Vertical (mm): 1600/2000
FEED:
Axis (mm/min): 8000
Rapid (mm/min): 16000(X,Y,Z)
Drive motor (Nm): ~4000 : 50(X), 27(Y), 27(Z)
Drive motor (Nm): X5000 : 70(X), 27(Y), 27(Z)
SPINDLE:
Taper: ISO50
Speed (rpm): 4000 (2 step : 0~1000, 1001~4000) Programmable universal head available 2,5° x 2,5° to 0,001 x 0,001
Drive motor (kW): 28/42
WEIGHT (kg): 33000/35000/37000
